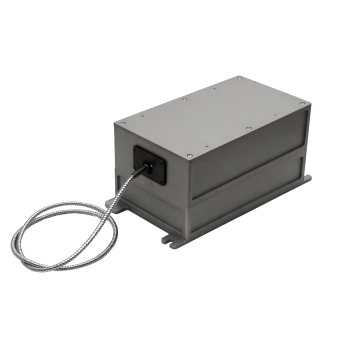

Frankfurt Laser Company introduces its new high-power 589 nm solid-state laser, model GLM-589-5600, delivering up to 5.6 W optical output with exceptional beam quality and stability. Designed for demanding professional use, this laser sets a new benchmark for yellow laser performance in medical, scientific, and display applications.
Manufactured and tested under stringent quality standards, the GLM-589-5600 combines advanced DPSS (Diode-Pumped Solid-State) engineering with optimized thermal management to ensure long-term reliability and superior power stability.
Technical Highlights
| Parameter |
Specification |
| Wavelength |
589 nm (typical 588.03 nm measured) |
| Optical Output Power |
5.0 – 5.6 W (CW) |
| Line Width (FWHM) |
0.87 nm |
| Power Stability (RMS) |
≤ 1.7 % over 5 hours |
| Beam Mode (Longitudinal) |
Multi-mode |
| Polarization Ratio |
1:1 linear |
| Residual IR |
< 3 % |
| Fiber Coupling |
200 µm core, NA = 0.22, 1 m SMA905 fiber |
| Warm-Up Time |
10 – 15 minutes to full stability |
| Operating Temperature |
23 – 35 °C |
| Power Supply |
100 – 240 VAC |
| Power Consumption |
120 W |
| MTTF |
> 10,000 hours |
| Dimensions (L × W × H) |
215 × 132 × 116.6 mm |
| Weight |
3.3 kg |
| Laser Class |
Class 4 |
| Compliance |
RoHS Certified |
Superior Performance Confirmed by Testing
Independent test results confirm a wavelength of 588.038 nm, a line width of 0.874 nm, and power stability of 1.7 % RMS over a continuous 5-hour operation at 26 °C. With an output exceeding 5.6 W, the system demonstrates both robustness and efficiency suitable for continuous professional operation.
Applications
Compact and Durable Design
The precision-engineered aluminum housing ensures efficient thermal dissipation, compact dimensions, and easy system integration. With a total mass of only 3.3 kg, the laser is ideal for both laboratory environments and OEM system applications.
Summary
The GLM-589-5600 offers:
-
High optical output up to 5.6 W
-
Excellent RMS power stability (< 2 %)
-
Narrow linewidth (< 1 nm)
-
Compact, rugged aluminum design
-
Fiber-coupled output for system integration
These characteristics make the GLM-589-5600 a reliable yellow laser source for applications requiring stable 589 nm emission and long operational lifetime.
