Compact High-Energy Solid-State Laser for Precision Applications
2025-07-10

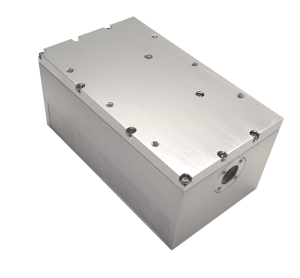

Frankfurt Laser Company announces the addition of its newest innovation to the product line: the High-Energy Solid-State Laser. This diode-pumped, actively Q-switched DPSS laser delivers outstanding pulse energy in an exceptionally compact package, making it ideal for demanding industrial and scientific applications.
Versatile Applications
Laser Ablation
Laser-Induced Breakdown Spectroscopy (LIBS)
Optical Damage Threshold Testing
Spectrum Analysis
Radar Ranging
Key Features
High Pulse Energy: ≥ 50 mJ at 1064 nm; ≥ 30 mJ at 532 nm
Compact Footprint: Just 85 × 60 × 130 mm (W × H × L)
Efficient Conduction Cooling: Reliable thermal management without bulky chillers
Air-Cooled, Low Power Consumption: ≤ 45 W total
Exceptional Cost-to-Performance: Proprietary pump design for maximum value
Technical Specifications (at 25 °C)
Parameter
Specification
Wavelengths (nm)
1064 / 532
Repetition Rate (Hz)
20
Single-Pulse Energy (mJ)
50 (1064 nm), 30 (532 nm)
Pulse Width (ns)
< 6
Power Stability (RMS)
< 3 %
Full-Angle Beam Divergence (mrad)
< 4 (horizontal & vertical @ 1/e²)
Beam Diameter at Output (mm)
2.5
Cooling Method
Air-cooled
Dimensions (W × H × L, mm)
85 × 60 × 130
Operating Temperature
10 °C to 35 °C
Storage Temperature
– 20 °C to 60 °C
Supply Voltage
24 V DC
Control Interface
“Trigger In/Out” via J30J–15ZKL connector
Power Consumption
≤ 45 W
Trigger Mode
External Trigger In/Out
Safety Notice: Classified per IEC 60825-1:2014 as Class 3B laser radiation. Avoid direct eye or skin exposure to beam.
Availability
The High-Energy Solid-State Laser is now available for order through Frankfurt Laser Company. For price quotes, customization options, or technical inquiries, please contact our sales team:
Since 1994, Frankfurt Laser Company has delivered cutting-edge photonics solutions — trusted by researchers, industrial manufacturers, and medical professionals worldwide. Our mission is to provide high-performance, reliable laser systems that advance science and industry.
